Dimensions

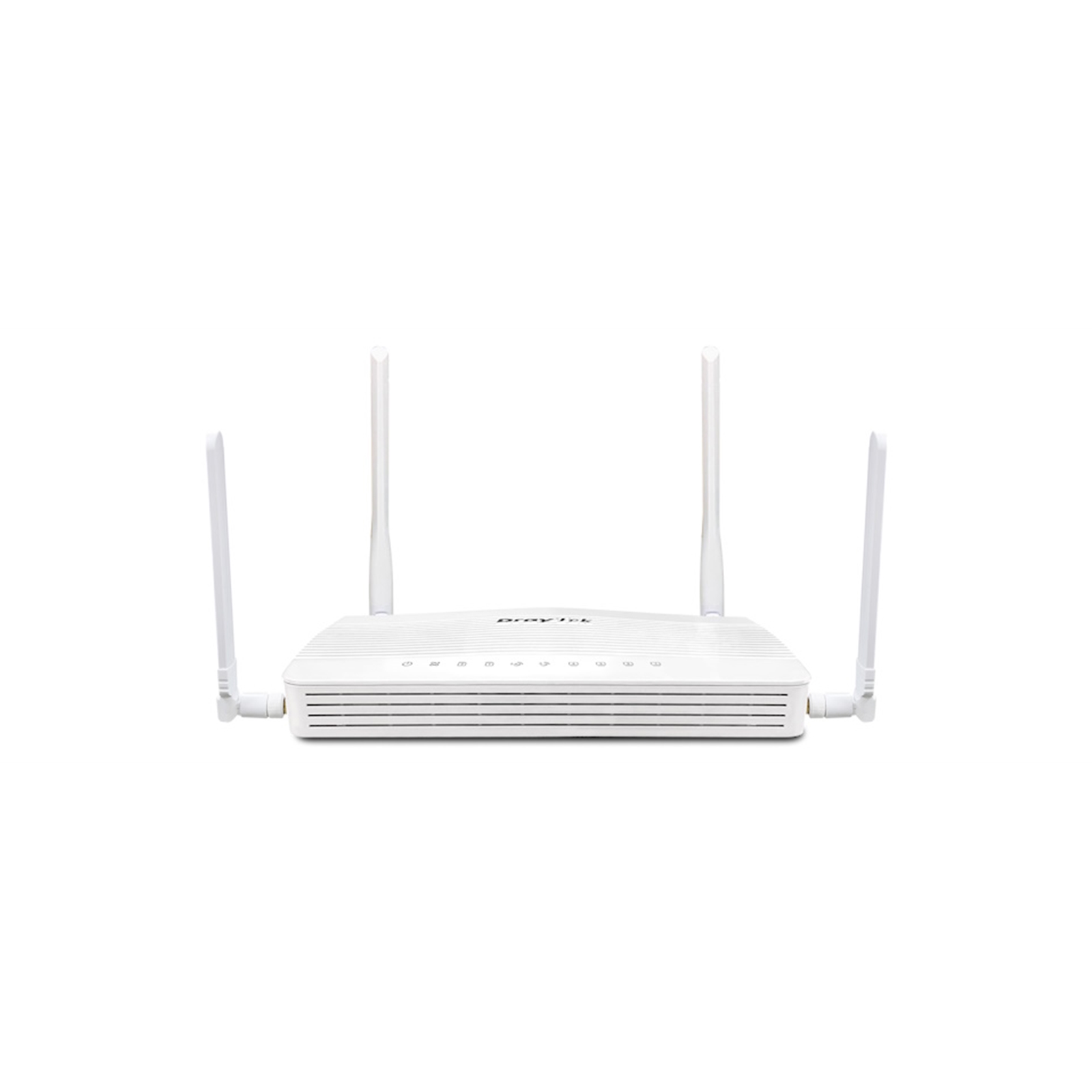

207mm Width 131mm Depth 42mm Height Weight: 840g Box Contents Vigor C510ax series router Quick Start Guide Cat-5e RJ-45 Network Cable 2x Detachable Wireless LAN Antennas 2x Detachable Cellular Antennas DC 12V Power Supply with UK Plug Warranty Standard: Two (2) Year, RTB Software security updates: 5 years after the EOL notification. Please note that this only applies to products sold in the UK VigorCare Extended Warranty VigorCare A3 3 Year Subscription: VCARE-A3 VigorCare A5 5 Year Subscription: VCARE-A5
Physical Interfaces
WAN Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 WAN/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45 LAN Ports: 3x Gigabit Ethernet (1G/100M/10M), RJ-45
Up To 940 Mb/s NAT Throughput
50,000 NAT Sessions
2.4GHz Or 5GHz Wireless WAN
WAN Active on Demand: Link Failure, Traffic Threshold Connection Detection: ARP Detect, Ping Detect
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates IPv4 Connection Types: PPPoE, DHCP, Static IP
IPv6 Connection Types
Ethernet: PPP, DHCPv6, Static IPv6, TSPC, 6rd, 6in4 Static Tunnel
802.11ax 2x2 Wireless Access Point
Compatible with 802.11a/b/g/n/ac wireless
Dual-band (2.4/5Ghz) Simultaneous Wireless
Up to 2402Mbps PHY rate at 160MHz with 5GHz Up to 574Mbps PHY rate at 40MHz with 2.4GHz Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
1024-QAM
Mesh Root support with DrayTek VigorAP Mesh Nodes
Up To 8 SSIDs Per Radio Band
Extended 5Ghz Band - Channels 36-48, 52-64, 100-140 Wireless Optimisation: Assisted Client Roaming, Band Steering
Enterprise 802.1x Authentication
Identity Access Policies (MAC address, Login, Guest Hotspot)
5G Modem / LTE Category 19 Modem
Unlocked to any network (EE, 3, O2, Vodafone, Eircom)
5G Max Data Rates
Please note that the maximum real-world throughput speed is estimated to be approximately 600Mbps. Below are the theoretical maximum data link rates for 5G New Radio Standalone (NR SA) and 5G New Radio Non-standalone (NR NSA) for the device.
550Mbps Uplink
5G NR Sub-6 SA Bands: 1, 3, 7, 8, 20, 28, 38, 40, 77, 78 5G NR Sub-6 NSA Bands: 1, 3, 7, 8, 20, 28, 38, 40, 77, 78 4G LTE (FDD) Bands: 1, 3, 7, 8, 20, 28 4G LTE (TDD) Bands: 38, 40 3G (WCDMA) Bands: 1, 8
Removable SIM Slot Cover
SMS Inbox - Send & Receive SMS text messages
UPnP
ALG (Application Layer Gateway): SIP, RTSP
LAN Management
802.1q Tag-based, Port-based VLAN Up to 4 LAN Subnets (NAT or Routing mode selectable per LANinterface)
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses for LANs 1-4
Hotspot Web Portal
Hotspot Authentication: Click-Through, External Portal Server
Networking Features
Policy-based Routing: Protocol, IP Address, Port
Local RADIUS Server
Multicast: IGMP Proxy, IGMP Snooping & Fast Leave Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP, OSPF
Up To 370Mb/s IPsec
LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local, RADIUS, TACACS+, mOTP, TOTP KE Authentication: Pre-Shared Key and Digital Signature (X.509) Encryption: DES, 3DES, AES (128/192/256) Authentication: SHA-256, SHA-1
VPN Protocols
IPsec IKEv1, IKEv2, IKEv2 EAP
Management
Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Firmware Upgrade via TFTP, HTTP, TR-069 Access Control Features: Access List, Brute Force Protection
Syslog
SMS, E-mail Notification Alert SNMP: v1, v2c, v3
Router-based Central Management Features
AP Management: Up to 20 VigorAP access points Switch Management: Up to 5 VigorSwitch network switches DrayTek Mesh: Up to 7 VigorAP access points^
Power Requirements: 100-240VAC
Power Consumption (Watts, maximum): 16W
Humidity 10% ~ 90% (non-condensing)
Operating Power: DC 12V @ 1.4A (via external PSU, supplied)
2x Detachable Cellular Antennas
DC 12V Power Supply with UK Plug
Warranty
Standard: Two (2) Year, RTB
Software Security Updates
5 years after the EOL notification. Please note that this only applies to products sold in the UK
