Netac Basic 8GB (1x 16GB) DIMM System Memory, 4800MHz, DDR5, CL40 - Bulk

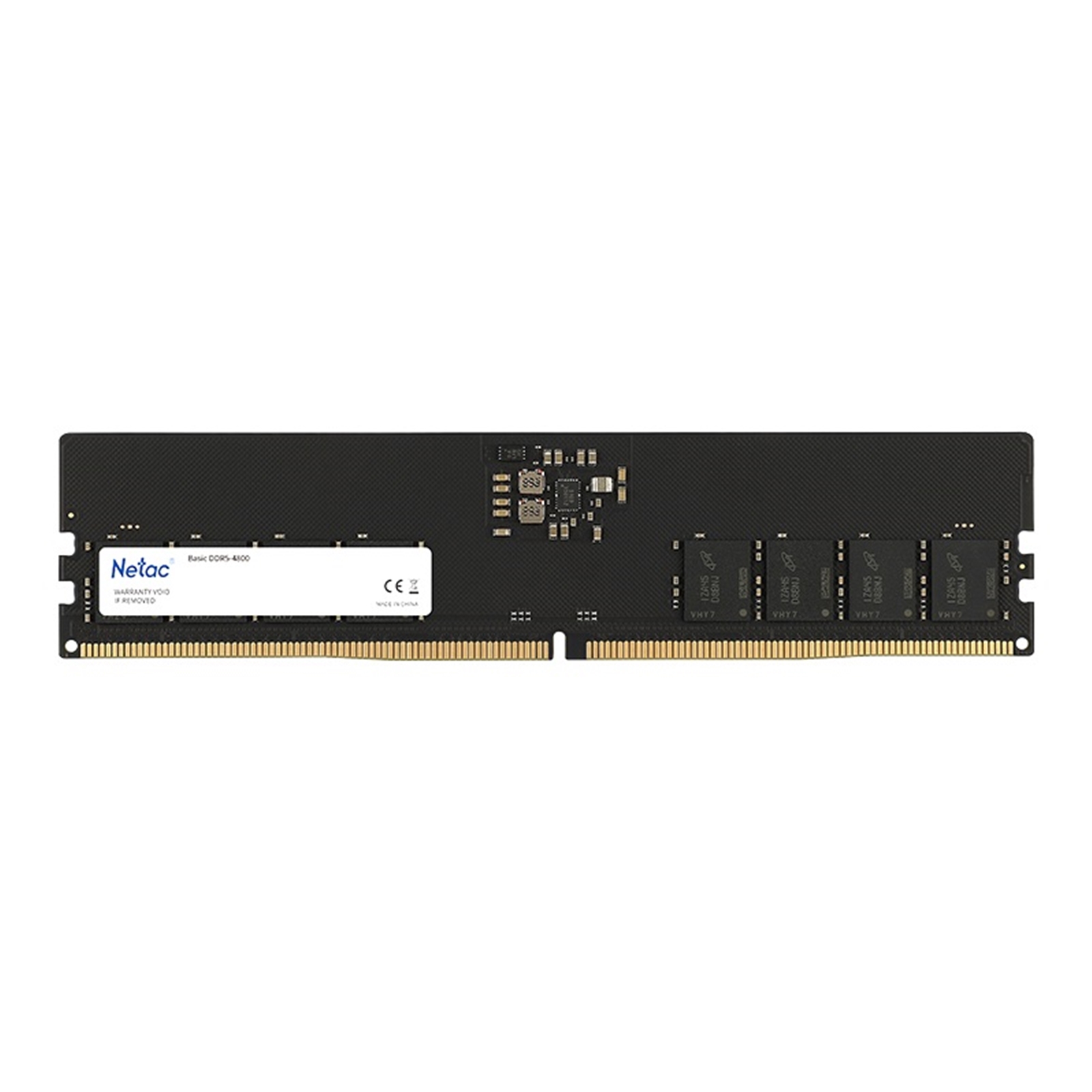

Netac NTBSD5P48SP-16 16GB DIMM System Memory, DDR5, 4800MHz, 1 x 16GB, 288 Pin, 1.1v, CL40-40-40-77 Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules)are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PCs.

Features DRAM VDD/VDDQ = 1.1V Typical / DRAM VPP = 1.8V Typical / VDDSPD = 1.8V to 2.0V 32 Bank with x4/x8 / 16 Bank with x16 8 BG(Bank Group) for X4/X8/X16 configurations BL16, BC8 OTF, BL32, BL32 OTF supported Same Bank Refresh Input Clock Frequency Change Multi-Purpose Command (MPC) Per DRAM Addressability (PDA) Connectivity Test (CT) / ZQ Calibration DFE (Decision Feedback Equalization) for DQ DQS Interval Oscillator On-Die ECC CRC (Cyclic Redundancy Check) Package Output Driver Test Mode

Memory Capacity 16GB (1 x 16GB)

Memory Type DDR5

Module Type DIMM

Memory Speed DDR5-4800MHz

Pin Configuration 288-pin

Registered/Unbuffered Unbuffered

Error Correction Non-ECC

CL-tRCD-tRP-tRAS CL40-40-40-77

Heat Sink /

Working Voltage 1.1v
