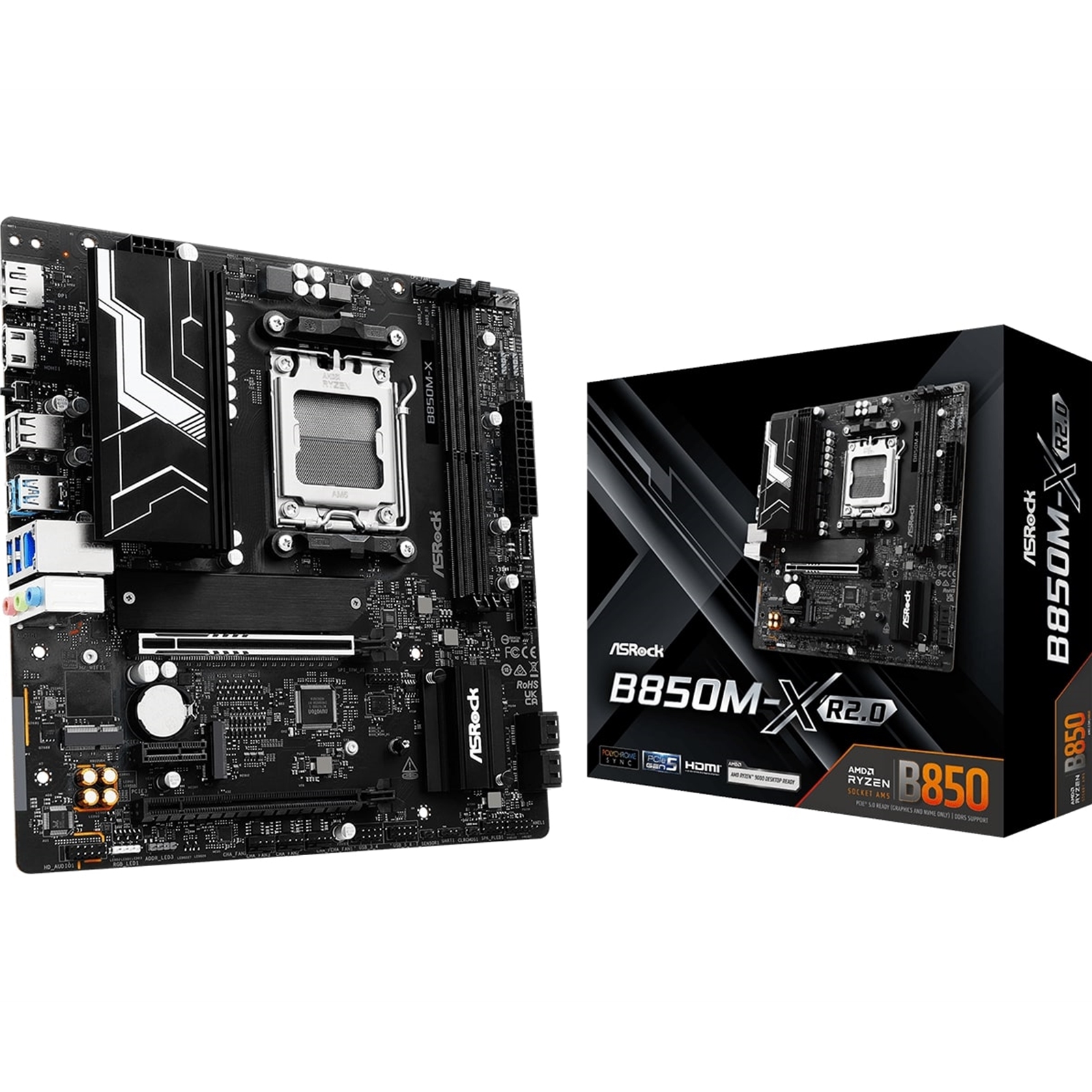

ASRock AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN

Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Static Noise Suppression Echo Cancellation Lateral Sound Cancellation Voice Stabilizer Sound Tracker, The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. Stylish Design POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects SignalRGB SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. DIY Friendly Reinforced Steel Slot [PCIe 5.0 Version] The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include: Extra anchor points Stronger latch Ensure signal stability Make sure heavy graphics cards to be well-installed Dual Graphics Outputs Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. EZ Setting Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1 : Install Auto Driver Installer step2 : Update drivers needed step3 : Done! BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)

Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS 256Mb AMI UEFI Legal BIOS with GUI support

Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

PCIe Gen5 (Graphics, M.2)

6+1+1 Power Phase, Dr.MOS for VCore

Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

256Mb AMI UEFI Legal BIOS with GUI support

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Optimized Default Setting for Game, Browser, and Streaming Modes

Supports Dragon 2.5G LAN Software

1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

5 x USB 2.0 (1 Rear (USB_1), 4 Front)

1 x Power LED and Speaker Header

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header

HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI

1 x Screw for M.2 Socket

FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
