Operating System: Windows 11 Pro
Processor: Intel Core Ultra 7 - 3.90GHz (5.50GHz boost) 20-cores & 20 threads Memory (RAM): Kingston Technology 32GB DDR5 (upgradeable to 128GB DDR5 – additional memory slot available) Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD Storage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5" Graphics: Gigabyte Nvidia GeForce RTX 5060 OC 8GB Graphics Card with 1 x HDMI 2.1 & 3 x DisplayPort 1.4 ports
1 X HDMI Port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 X USB 3.2 Gen 2 Type-A Port (red)
4 x USB 2.0/1.1 ports on the back panel
Intel Wi-Fi 6E AX211 (PCB Rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Processor
Intel Core Ultra 7 265KF 20 Core, 20 Threads, 3.9GHz up to 5.5GHz Arrow Lake Processor LGA 1851, 36MB Cache, 125W, 250W Maximum Turbo Power
NPU Peak TOPS (Int8) 13
Sparsity Support Yes Windows Studio Effects Support Yes AI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Intel Standard Manageability (ISM) : Yes
Intel Control-Flow Enforcement Technology : Yes
Memory
Kingston KCP556UD8-32 32GB (1x 32GB) DIMM System Memory, 5600MHz, DDR5, CL46, Intel XMP
1 X 32GB DIMM Memory
Intel XMP Profile Support
SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/s
No Additional Drive Fitted
2 x 2.5" or 3.5" Drive Bays Available For Expansion
Graphics
Gigabye NVIDIA GeForce RTX 5060 WINDFORCE MAX OC 8G GDDR7 Graphics Card, 3840 CUDA Cores, 2512 MHz Core Clock, Dual Fan
Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date
Networking
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) - On Motherboard 1 x TP-Link TX201 2.5 Gigabit PCIe Network Adapter
Power Supply
DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug
Motherboard
Gigabyte B860 EAGLE WIFI6E Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E
CPU
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
4 X SATA 6Gb/s Connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
1 X DisplayPort (Note)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 X CPU Fan Header
1 x CPU fan/water cooling pump header
2 X System Fan Headers
2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers
1 X S/PDIF Out Header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
2 X USB 2.0/1.1 Headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Chassis

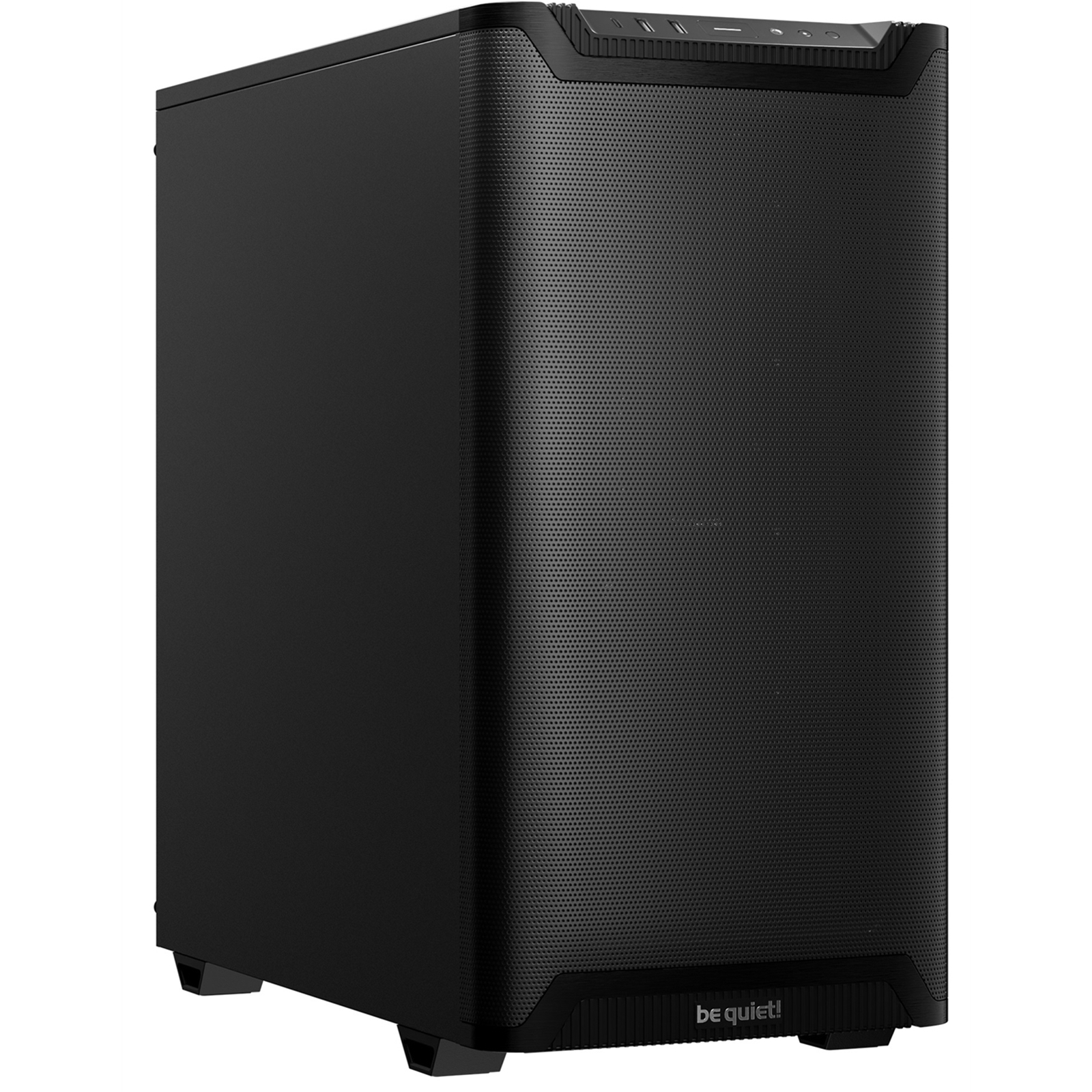

be quiet! Pure Base 501 Airflow Black ATX Mid Tower Case with USB-A, USB-C, 2 x Pure Wings 2 140mm Black PWM Fans, Sleek Front Panel and Airflow Cover
Cooling
Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled) Top: Up to 2 x 120mm or 2 x 140mm
Dimensions
463mm x 450mm x 231mm (L x W x H)
Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
