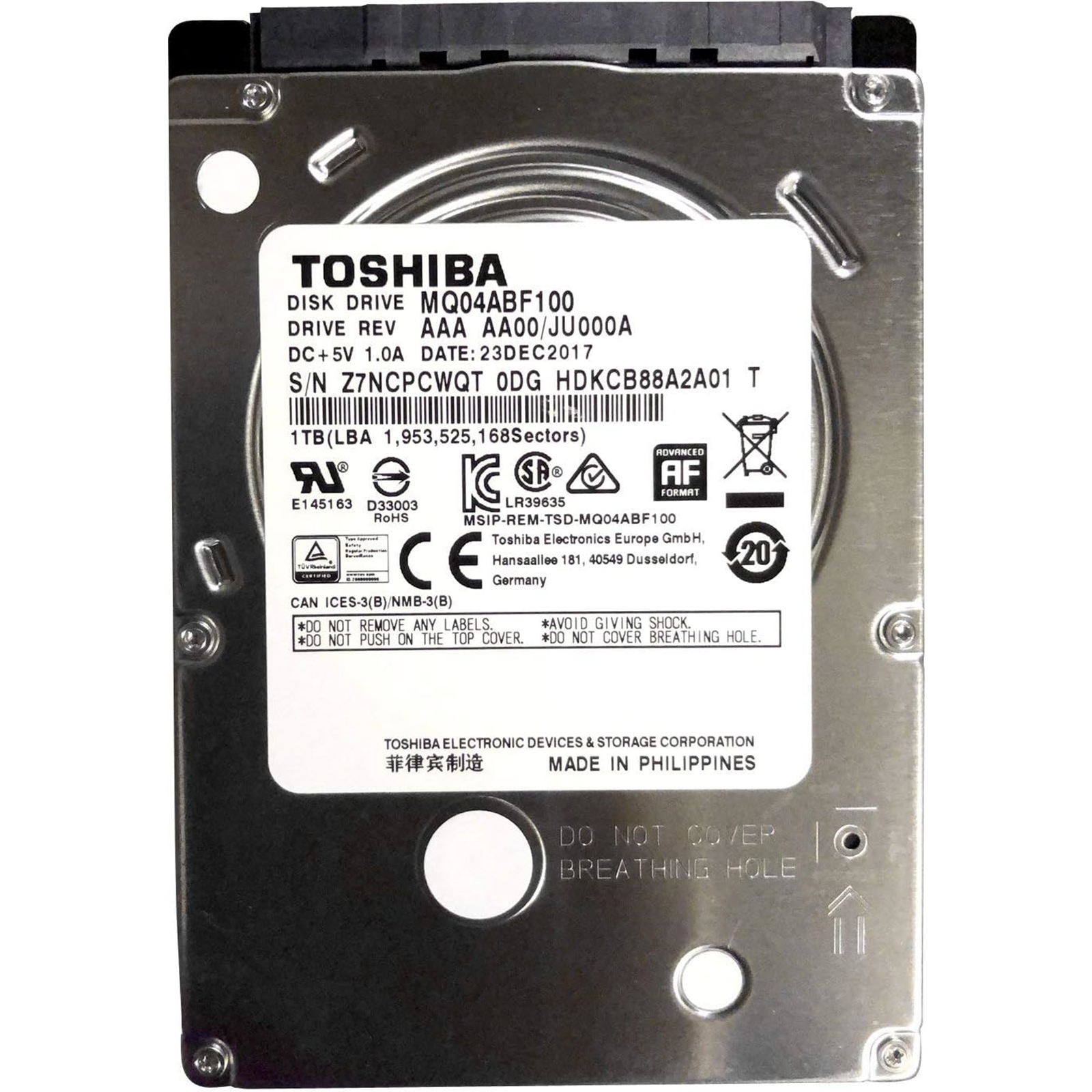

Toshiba MQ04ABF100 1TB 5400RPM 2.5 Inch 7mm Internal Hard Drive

New MQ04 HDD Series model delivers 1TB capacity for portable PCs, game systems and other client storage applications

TOKYO—Toshiba Electronic Devices & Storage Corporation today announced its new MQ04 Series 1TB^[1] HDD, designed for applications that require high capacity, highly durable storage, including notebook PCs, game systems, all-in-one slim-line desktop systems and set-top box appliances. Shipments of the MQ04 1TB model start today, with general availability.

The MQ04 Series single-disk model offers the storage industry’s largest capacity^[2] per disk for a 2.5-inch HDD, and delivers 1TB of data storage capacity in an ultra-compact 2.5-inch form factor only 7mm high. With a 6 Gbit/s SATA interface^[3], 5,400 rotational speed and a large 128MiB^[4] buffer, the new drive is engineered for consistent seek and transfer rate performance, and improves sustained transfer rate performance by 34 percent over the previous 1TB MQ01 generation model. It is expected to meet strong market demand in the client HDD market for high performance, large capacity storage for applications such as notebook PCs, and for recording high resolution images and data.

Toshiba Group positions HDD as a focus business area within its storage business. By enhancing its line-up, Toshiba aims to further enhance solutions for applications ranging from notebook PCs to data centers and high reliability products in both the enterprise and consumer markets, and to ensure that it is uniquely positioned to meet demand across the entire range of customer needs.

Specifications

Interface;
SATA (1.5 Gbit/s, 3.0 Gbit/s, 6.0 Gbit/s)

Formatted Capacity
1TB

Performance

Interface Speed
6.0 Gbit/s

Rotation Speed
5400 rpm

Average Latency Time
5.56ms

Buffer Size
128 MiB

Logical Data Block Length
HOST: 512 B DISK: 4096 B

Supply Voltage

Allowable Voltage
5V + 5%

Power

Read/Write
1.65 W Typ.

Low power idle
0.60 W Typ.

Acoustics

For idle mode (spindle is rotating)
19 dB Ave.

Seek
21 dB Ave.

Temperature
Op - 0- 60
Non-op - -10 - 65

Humidity
Op - 8% - 90% RH
Non-Op - 8% - 90% RH
