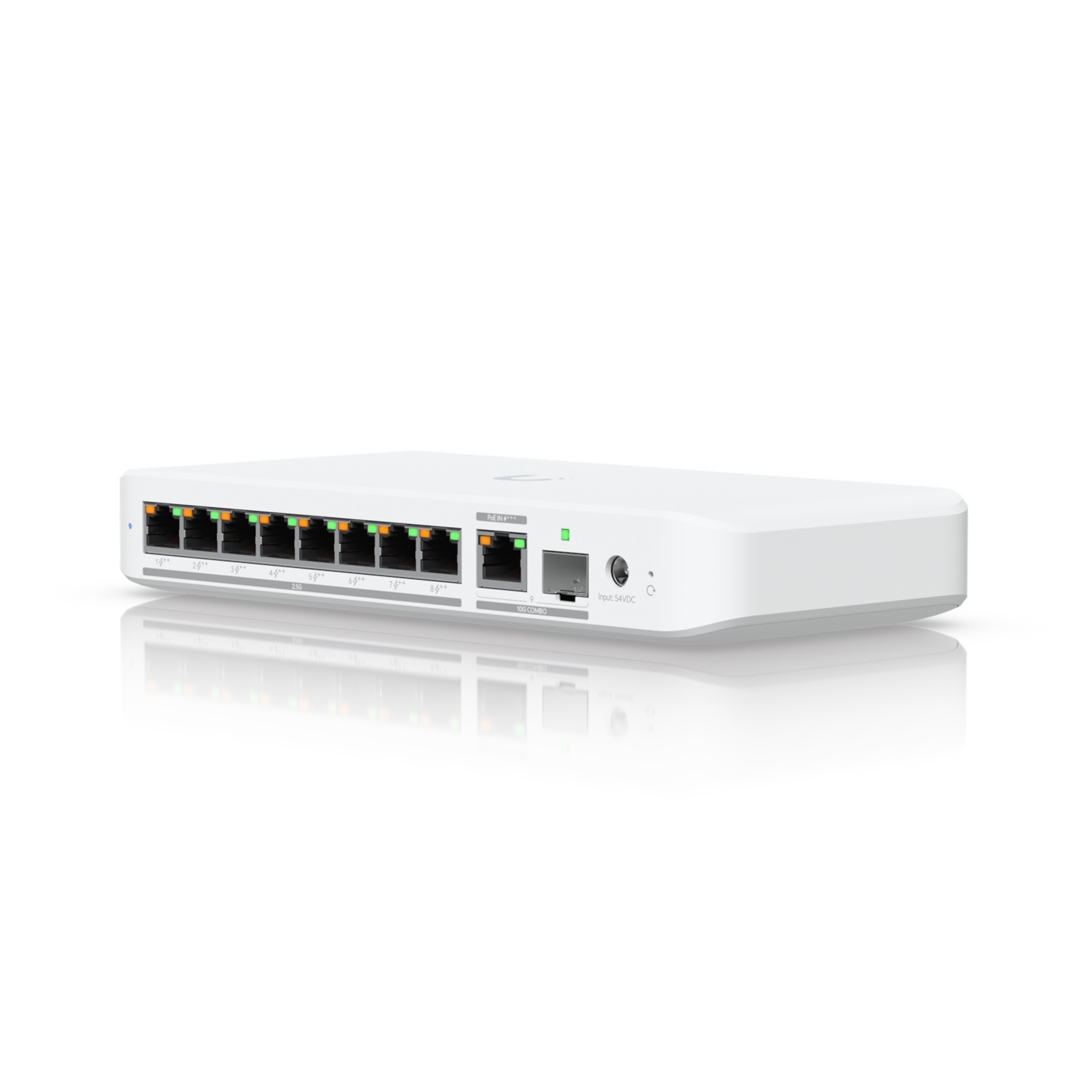

Ubiquiti . UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered POE++ Managed Switch, USB-C, 8-Port, POE

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

Note. Actual PoE availability may vary based on input cable length and quality. AC power adapter sold separately.

Dimensions 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")

Port Layout 2.5 GbE RJ45 8 (All PoE++)

10 GbE RJ45 1 (PoE+++)

10G SFP+ 1

Max. PoE Output Up to PoE++

Total PoE Availability PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W

Form Factor Compact Desktop, wall, DIN, magnetic

Switching Capacity 60 Gbps

Total Non-Blocking Throughput 30 Gbps

Forwarding Rate 45 Mpps

Supported VLANs 256

MAC Address Table Size 4000

STP & RSTP Yes

Egress Rate Limit Yes

Flow Control Yes

Storm Control Yes

Multicast & Broadcast Rate Limiting Yes

Port Isolation Yes

Port Mirroring Yes

Jumbo Frames Yes

Loop Protection Yes

PoE Ports PoE++ 8

Max. PoE Wattage per Port by PSE PoE 15.4W

PoE+ 32W

PoE++ 64W

Max. Power Consumption 14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)

Power Method (1) AC/DC adapter (Excluded) (1) PoE+++

Power Input Method DC Input PoE

Supported Voltage Range 50—57V DC/PoE

Management Ethernet

Weight 567 g (20 oz)

Enclosure Material Polycarbonate

Mount Material Polycarbonate

Certifications CE, FCC, IC
