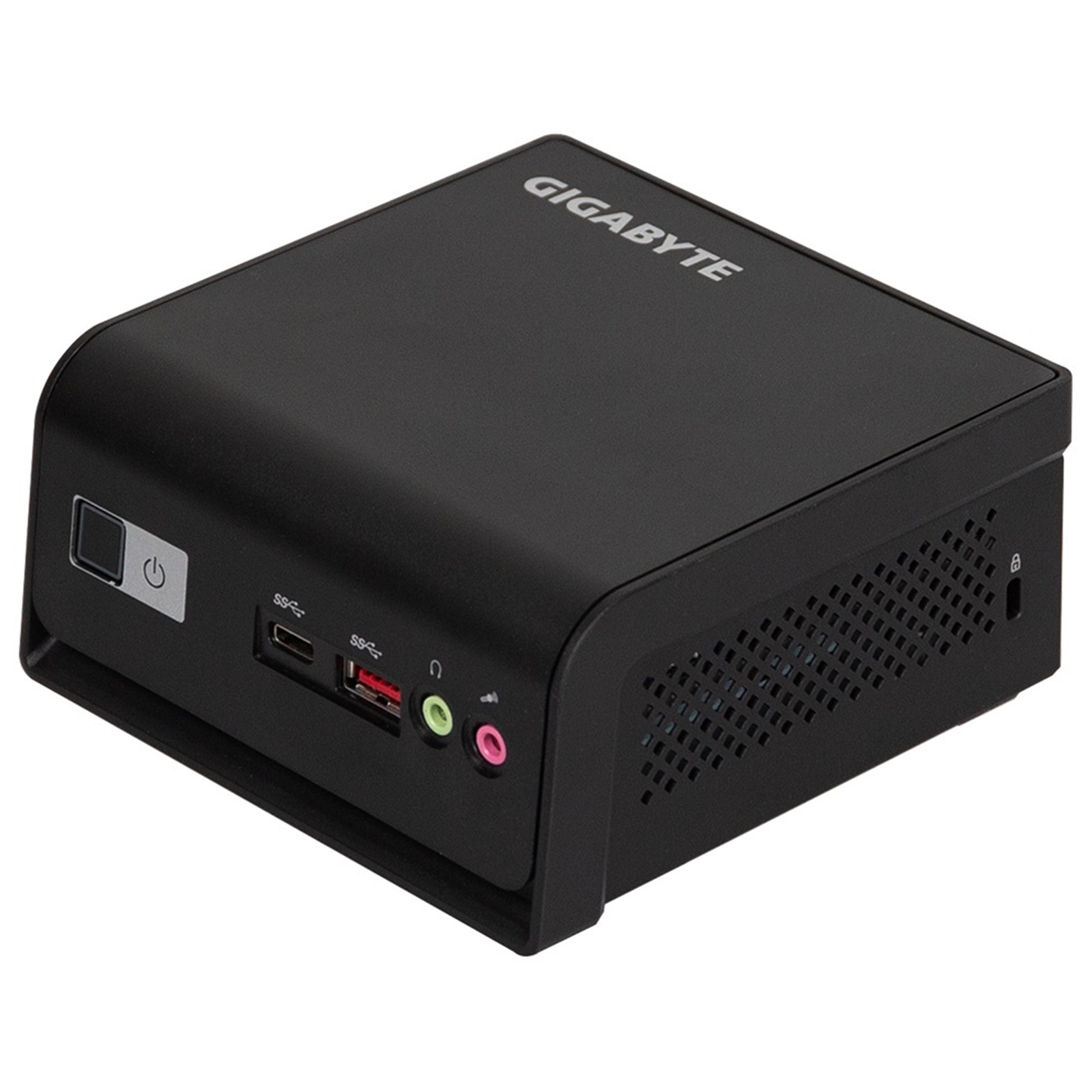

Ultra Compact Intel N150, Quad Core, 8GB Kingston RAM, 500GB Kingston NVMe, Wi-Fi & BT, USB-C Pre-Built PC

Light and Flexible Compact PC Kit
Even though the BRIX has a small footprint compared to traditional desktop PCs and it has the ability to outperform other small form factors, it still has room to grow. BRIX comes being a Storage model which supports expansion from a 2.5? SSD or Hard Drive.

Dual Band Wireless-AC Connectivity
BRIX offers Wi-Fi 5 and BT 5.0 connectivity, letting you enjoy speeds, higher capacity and a broader coverage.

Bluetooth
Built with the latest Bluetooth module, GIGABYTE BRIX can integrate your environment of smart devices and other Bluetooth accessories in an energy efficient and seamless way.

High speed Gigabit Ethernet Connection
Allows for quicker network connectivity and content downloading while on the Internet.

High speed USB 3.2
GIGABYTE BRIX is flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.2 supports transfer speeds of up to 10Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.

USB-C Alt Mode
USB Type-C Alternate Mode allows USB type C port to combine USB data or video Display port in one connector.

Dimension
113 mm x 116.52 mm x 56.22 mm

Motherboard Size
108 mm x 103 mm

CPU
Intel Processor N150
4C, up to 3.6 GHz, 6W

Memory
Kingston KCP556SS6-8 8GB (1x8GB) DDR5 5600MHz Non-ECC SODIMM System Memory
1 x SO-DIMM DDR5 slot Max. 16GB

LAN
GbE LAN (Realtek RTL8111H)

WiFi Card
AW-CB515NF
Wi-Fi 5 ; 802.11 a/b/g/n/ac WLAN 1T1R with Bluetooth 5.0

Graphics
Intel Graphics 24EUs
1 x HDMI v2.0, 4096x2160@60Hz
1 x Rear IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz
1 x Front IO USB type C ALT (DisplayPort v1.4), 3840x2160@60Hz

Audio
Realtek ALC897

Storage
Kingston NV3 (SNV3S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 2200 MB/s

Expansion Slots
1 x M.2 M Key 2280 slot (PCIe Gen 3x2)
1 x M.2 E key 2230 slot (For Wi-Fi + Bluetooth card)

Front I/O
1 x Power button
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 with Type-C (ALT mode, DP+USB)
1 x Headphone
1 x Microphone

Rear I/O
1 x HDMI
1 x RJ45
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C (ALT mode, DP +USB)
1 x Wire Clamp Screw Hole

Left I/O
1 x DC-In

Right I/O
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V / 3.42A, 65W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm

Support OS
Windows 11 64bits - not installed

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
